CONNECTORS & RECEPTACLES

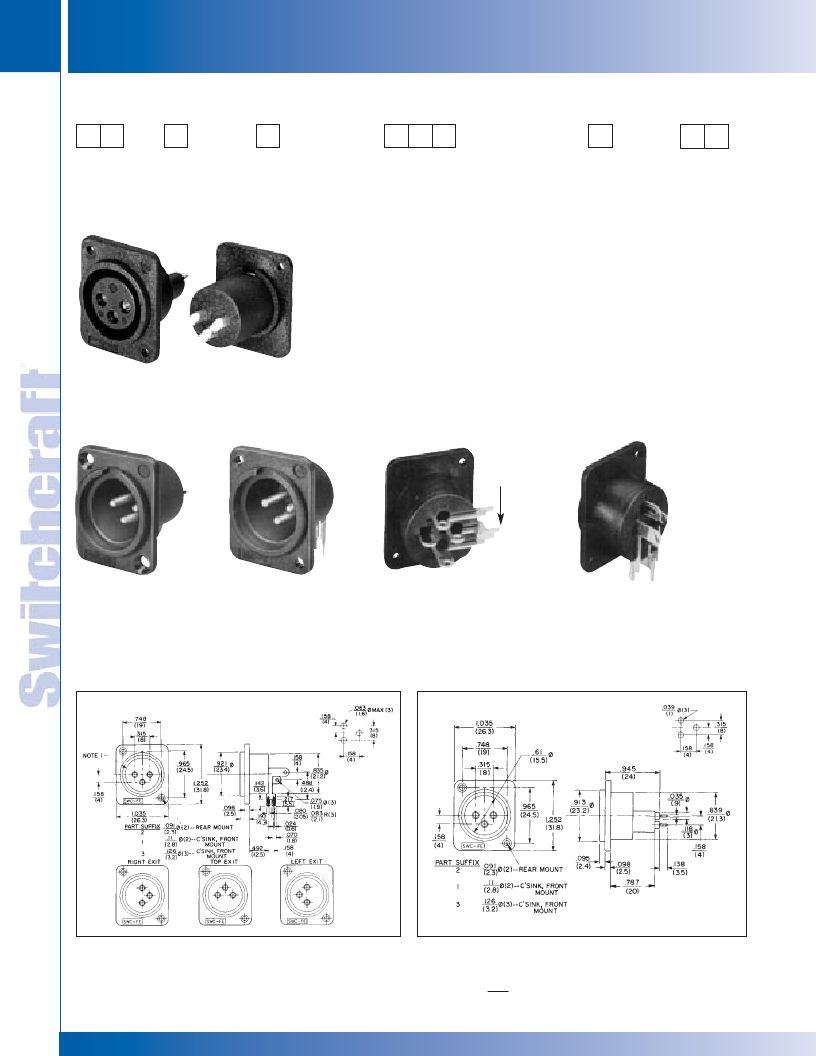

PD SERIES PART NUMBERING SYSTEM PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
PD SERIES PART NUMBERING SYSTEM
P
D
3
SERIES
PINS/
GENDER
GENDER
HOUSING
TERMINALS
PD
CONTACTS
F - Female
M - Male
FEMALE
RA - Right-angle,
Bottom Exit
RL - Right-angle,
Left exit
RR - Right-angle,
Right Exit
MALE
RML - Right-angle,
Bottom Exit,
Long Screw
Mach. Term.
RMS - Right-angle,
Bottom Exit,
1 - Front Mount
.11" (2.8 mm)
diameter flange
mounting holes
2 - Rear Mount
.091" (2.3 mm)
diameter flange
Blank=
Silver
terminals
AU=
Gold
terminals
Note: New solder cup
option shown.
RU - Right-angle,
Top Exit
RML - Right-angle,
Bottom Exit,
Long Screw
Mach. Term.
RMS - Right-angle,
Bottom Exit,
Short Screw
Mach. Term.
S - Straight,
Short Screw
Mach. Term.
S - Straight,
Rear Exit
SC - Solder Cup
mounting holes
3 - Front Mount
.126" (3.2 mm)
diameter flange
mounting holes
Rear Exit
SC - Solder Cup
Bifurcated
PCB Terminals
Bifurcated
PCB Terminals
PD3MS1
3-pin male,
straight (rear exit)
PC terminals.
Front mount.
PD3MRML2
3-pin male, right
angle (bottom exit)
long screw machine
terminals. Panel
mount holes not
countersunk.
RECOMMENDED PC BOARD
LAYOUT (Component Side)
PD3FRL1
3-contact female,
right-angle (left exit)
PC/solder terminals.
Ground lug. Front
panel mount.
PD3FRA1
3-contact female,
right-angle (bottom
exit) PC/solder
terminals. Ground
lug. Front panel
mount.
RECOMMENDED PC
BOARD LAYOUT
(Component Side)
Numbers PD3FRA1, 2, and 3; PD3FRL1, 2, and 3;
PD3FRR1, 2 and 3; PD3FRU1, 2 and 3 (Typical)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Numbers PD3FS1, 2, and 3 (Typical)
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
